Technical Data
| max. cast weight (g) | 1,400 |

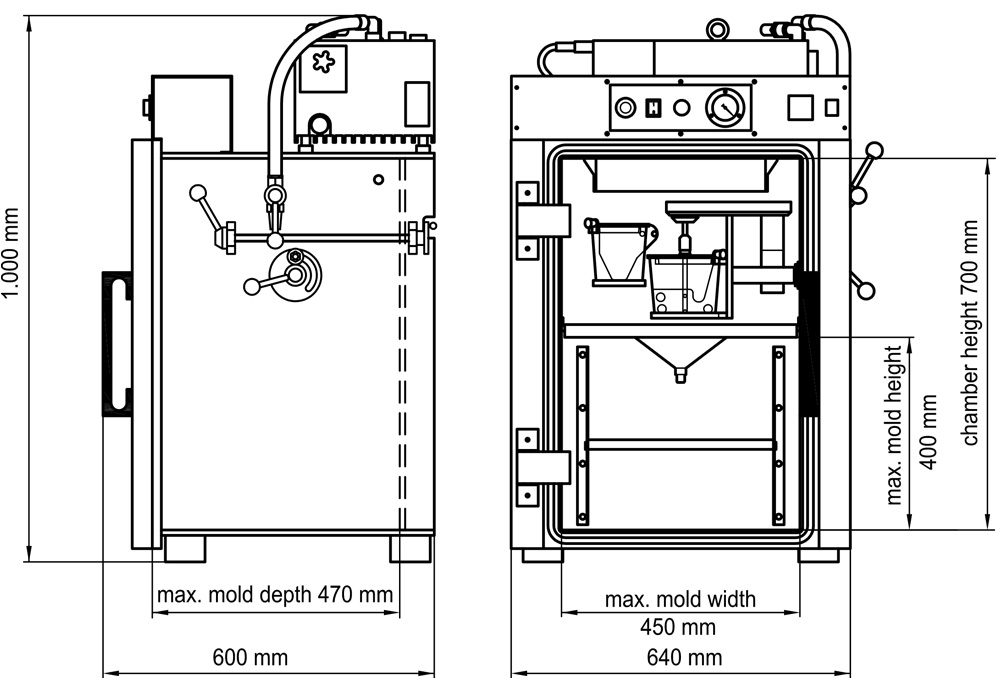

| max. mould size (B x T x H) (mm) | 450 x 470 x 400 |
| chamber interior size (B x T x H) | 450 x 470 x 700 |
| chamber overall size (B x T x H) | 640 x 600 x 1,000 |
| vacuum power of the pump m³/h | 25/≤0.5 mbar |
| evacuation time 1,013 -> 0 hPa (min) | 3 |
| leak time 8 (sec) | 25 |
| voltage (V/Hz) | 230 / 50 |
| power (kW) | 0.9 |
| weight (kg) | 250 |
